Category：Android Handheld Industrial DPM Scanner
Product ID：S2-series
Views：468
Product Introduction：
A Handheld Industrial Direct Part Marking (DPM) Barcode Scanner is designed specifically to read barcodes that are directly marked onto a product or part. DPM barcodes are commonly used in industrial settings for traceability, quality control, and inventory management. Direct Part Marking refers to the process of permanently marking a barcode directly onto an item, often using methods like laser engraving, dot peening, or chemical etching
Product Features:

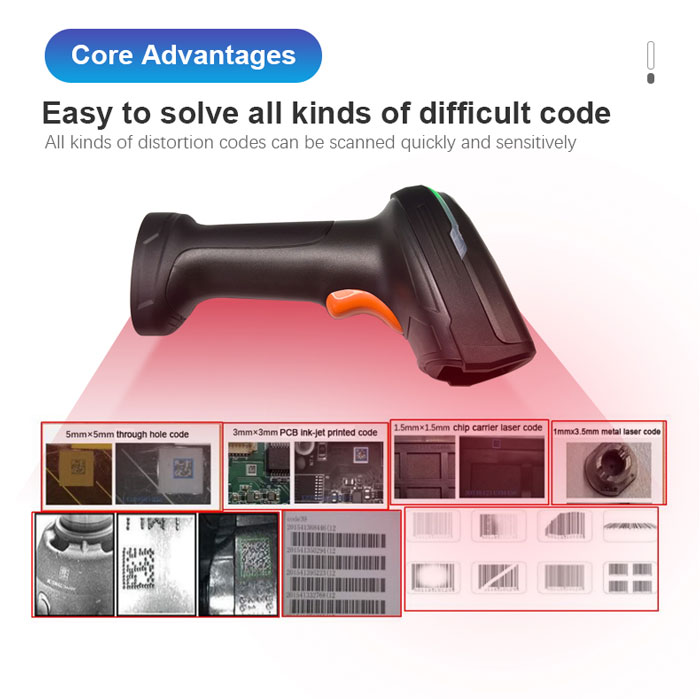

DPM Compatibility:
Specifically designed to read and decode Direct Part Marking (DPM) barcodes, which are often more challenging to scan due to their varied marking methods.
1D and 2D Barcode Support:
Capable of reading both traditional 1D barcodes and 2D barcodes, including QR codes and Data Matrix codes.
Rugged Design:
Built to withstand harsh industrial environments, featuring rugged construction to endure drops, vibrations, and exposure to dust and liquids.
High-Performance Scanning:
Provides fast and accurate scanning even in challenging conditions, ensuring reliability in industrial workflows.

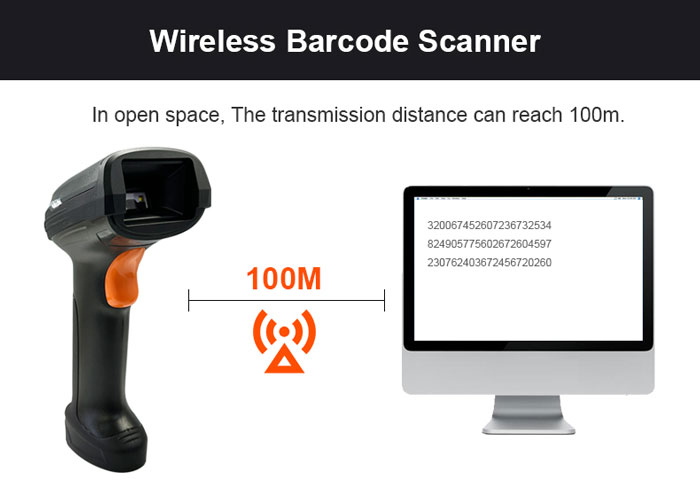

Multiple Connectivity Options:
Offers various connectivity options such as USB, Bluetooth, or wireless, depending on the specific requirements of your application.
Application
Manufacturing, warehouse logistics, medical and health, chain retail, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Product Parameters:
Parameters | ||||
Scanning performance | Resolution | 1280 Pixels(H) x 1024 Pixels(V) | ||
Illumination | White light | |||
Focus | S2-1 Green strip； S2-2 Red strip | |||
Reading mode | Key scanning, Automatic induction scanning | |||
Decode Capabilities | 1D | UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited Composite Code-A , Composite Code-B , Composite Code-C | ||
2D | Data Matrix , QR Code , Micro QR , PDF 417 , Micro PDF 417，Aztec, Maxicode | |||
Reading accuracy | 1D : ≥3 mil ; 2D : ≥5 mil | |||
Typical Depth of Field | Model | S2-1 | S2-2 | |
Code 39 (3mil) | 55mm~150mm | 40mm~70mm | ||
Code 39 (5mil) | 45mm~250mm | 30mm~100mm | ||
Data Matrix (5mil) | 40mm~60mm | 40mm~70mm | ||
100%UPCA (13mil) | 40mm~500mm | 30mm~100mm | ||
Field of view | Level 41° (H)，Plumb 35° (V); | |||
Print contrast | ≥20%(UPC/EAN 100% , PCS 90%) | |||

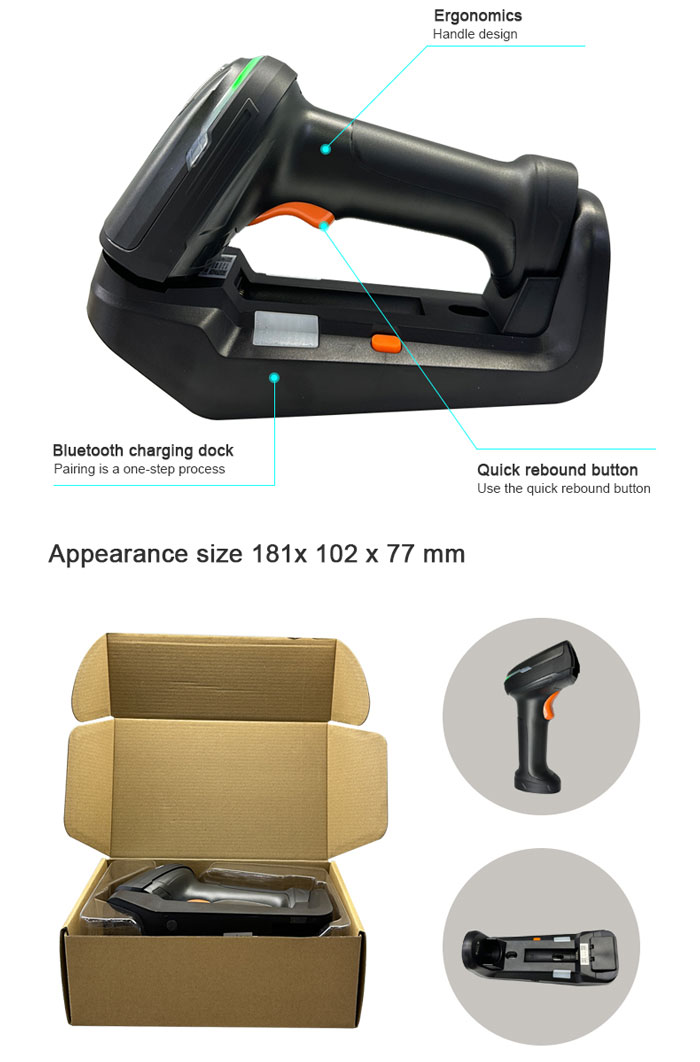

Dimension | Physical dimension | 181x 102 x 77 mm | ||
Electrical parameters | Weight | 150g (cable not included) | ||
Communication interface | USB ，RS-232，Virtual COM Port | |||
Data cable length | Straighten 2 meters | |||
Prompt way | Buzzer、LED Indicator light, Vibration motor | |||
Operating Voltage | DC 5V±5% | |||
Working current | 300 mA ±5%（Typical value）, 400 mA ±5%（Maximum value） | |||
Stand-by current | 100 mA ±5% | |||
Environmental parameters | Operating temperature | -20℃~+50℃ | ||
Storage temperature | -40℃~+70℃ | |||
Relative humidity | 5%~95%(no condensation) | |||
Static Protection | ±12 kV(Air discharge)，±8 kV (Direct discharge) | |||
Drop height | 1.8m | |||
Degree of protection | IP65 | |||
Regulatory | FCC Part15 Class B，CE，EMC Class B | |||
