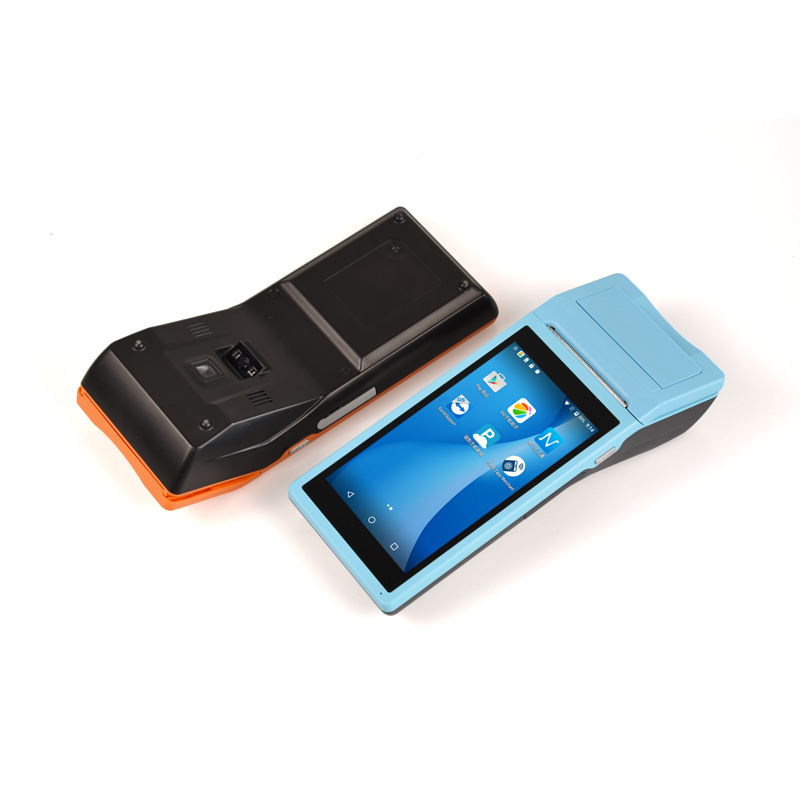

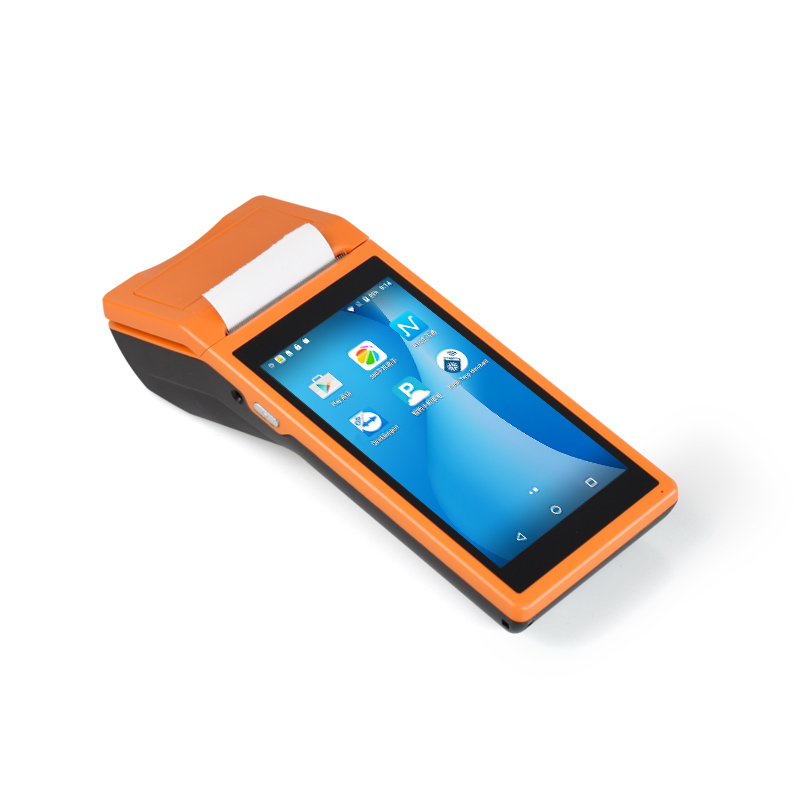

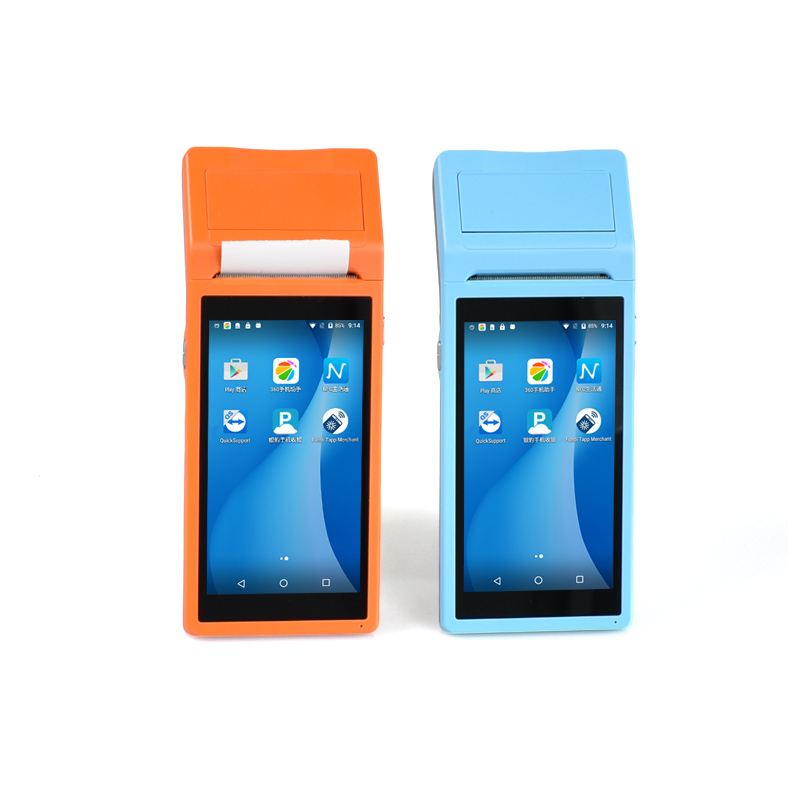

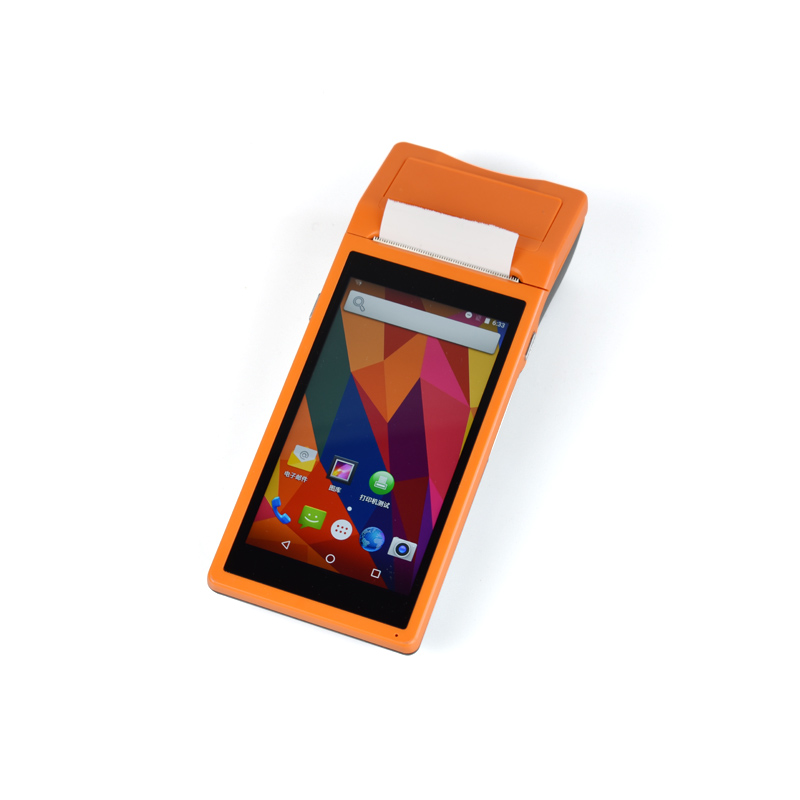

S4 PDA Barcode Scanner

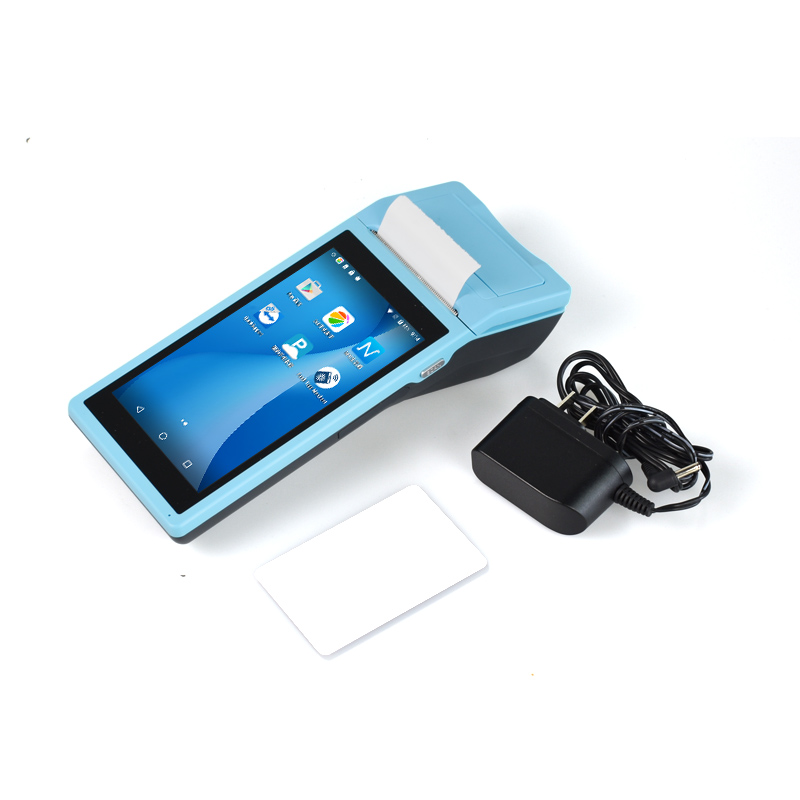

The S4 PDA supports power charge by this socket only, do not support charge by USB.  When power charging, screen would show the battery charging logo.  If you do not get this logo after you connect the power adapter, please check all connections carefully.

Warning:  Charging by Non Specified power adapter is forbidden.

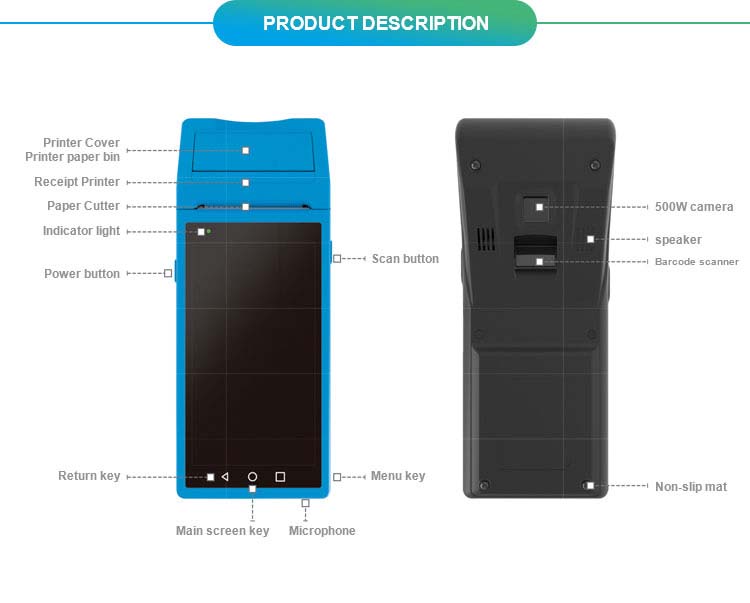

Product Features:

1.Power Button

Short Press: Turn-on Screen / Turn-off & Lock Screen

Hold Down: Hold down the power button 3-5 seconds to Power on the S4 PDA barcode scanner / Shut down or Restart the S4 PDA barcode scanner

Note: If the machine hanged or no response, please hold down the power button for 10 seconds to Restart.

2.Scan Button

To work the 1D scanner which build-in at the rear of S4 PDA barcode scanner.

3.Return Key

Return to previous operator interface.

4.Main Screen Key

Hide all windows and show the main screen.

5.Menu Key

Have a quick view and get list of the operating Apps.  You can choose or close the Apps.

6.Charge Socket

External diameter: 3.5mm,

Internal diameter: 1.35mm,

Input: 12V / 1.0A.

7.Phone Out

This socket allows you to connect an earphone or external loudspeaker.

8.SIM Card Slot

Supports Micro card, 4G / 3G network.

Warning:  Please shut down the S4 PDA barcode scanner before insert SIM card, otherwise the card slot would be damaged.

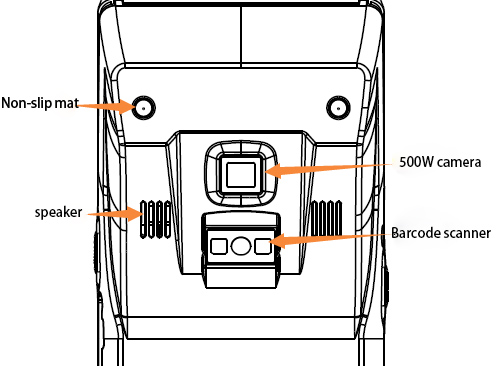

9.Camera

5,000,000 Pixel fixed focus camera.  Supports mobile phone scavenging payment and 2D code scanned .  15CM is the best distance.

10.CCD Scanner

This device is option & is able to scan 1D barcode.  This device would be very convenient for courier, store casher & stocktaking.

11.Receipt Printer

This is the 58mm high-speed Thermal Receipt Printer, which supports label print.  Paper diameter is 57 x 40 mm

To change paper, please open the paper cover, put in the thermal paper or thermal label, keeps a small part of paper out of the paper slot, and close the paper cover.

Product Parameters:
